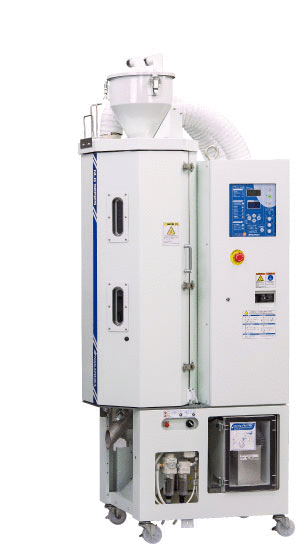

DEHUMIDIFYING DRYER NLG/NLF SERIES
Sideways opening structure "Aladdin Swing"
Advanced labor saving for material change with the sideways opening structure "Aladdin Swing"
Does it take time to change material?
"Aladdin Swing," a structure to open the main unit sideways, can facilitate cleaning at the time of material change.
Space saving
Space saving owing to the loader-integrated structure
Achieved space saving by approx. 50% down from conventional dehumidification dryers (honeycomb type) of our make
Easy-to-operate panel
Enlarged temperature display to improve the visibility
The temperature display is 5 times larger compared with the conventional dehumidification dryers of our make.
The operational status can be grasped easily even at a distant point.

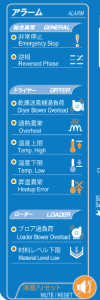

Error contents are displayed with pictogram
The error can be confirmed directly not in an error code but in a panel symbol.
The error type can be grasped easily at a glance.
This enables immediate troubleshooting.
Provided with monitoring function
- Dryer and blower overload
- Overhead error
- Temperature upper/lower limit alarm (option)
- Temperature rise abnormality alarm (option)
- Loader blower overload
- Material level lower limit (option)
New-type no-load feeder
Protection of in-hose pellets from moisture absorption
Equipped with the no-load feeder on standard, which can feed the material exhaustively without leaving any material inside the hose
This protects the dried pellets in transit from moisture absorption.
New mechanistic material discharge port
A combination of the sliding cover and switch facilitates pellet discharge at the time of material change.
Lowered floor
The floor lowering enabled by the adoption of the new-type no-load feeder improves the maintenance efficiency and the safety!
"Dual Package"

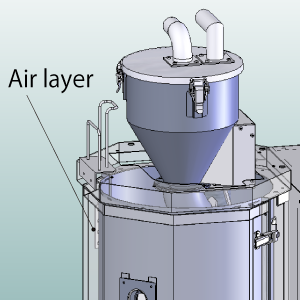

Aerial heat insulating dual structure "Dual Package" of the hopper dryer unit
In addition to the high-efficiency dehumidification mechanism, the hopper dryer main unit is equipped with "Dual Package," an aerial heat insulating dual structure. This ensures improved energy saving and safety.

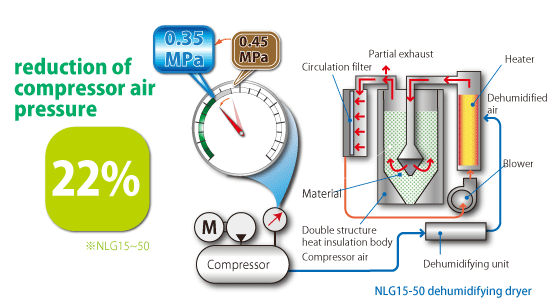

Further energy saving by improving the dehumidification mechanism!
Developed a new dehumidification mechanism to supply dehumidified air to the hot air circulation circuit.
This mechanism supplies dehumidified air to the hot air circulation circuit, which recovers and reuses exhaust heat, to dehumidify and dry plastic pellets efficiently in a power-saving way.
Realized approx. 22% reduction of compressor air pressure *NLG15 - 50
The improved dehumidification unit reduces the compressor air pressure by approx. 22% down from the conventional dehumidification dryers of our make (NLD15 - 50)
DOWNLOAD
Specification sheet (PDF)
| @NLG / NLF Series | ||||||||
|---|---|---|---|---|---|---|---|---|
| NLG15 | NLG25 | NLG50 | NLG75 | NLG100 | NLF150 | NLF200 | ||
Catalogue (PDF)
| Dehumidifying Dryer + Hopper Dryer |
|---|
